Pre-drilled frames are easily to assemble
with minimal hand tools. Main cover
and doors are made from long life UV Resistant and Fire Retardant Poly with
Fabric Backing. All fabric components feature
heat welded seam construction. Unit
features double zipper doors on both ends
to allow drive though capability, and good ventilation. Each door contains a
pocket for a rigid pole and grommets for securing them up during use. Each unit
comes equipped with earth anchors with a 36” stainless steel tether and a drive
rod to secure the unit at 6 strategic points.
Heavy Duty Galvanized Finish on All Steel Frame
Components for Maximum Strength & Long Life
-
Heavy Duty
Galvanized Finish on All Steel Frame Components for Maximum Strength & Long
Life
-
Easy Bolt Together
Design - all Pre-drilled & Cut
-
Wind Brace Support
on Both Sides
-
Two(2) Double Zipper
Doors with Bottom Pockets
-
Four(4) Bungee Cord
Tie Backs for Doors
-
Protective Plastic
Tube End Caps - All Open Ends
-
Standard Thread
Plated Hardware Kit with Retaining Nuts & Protective SS Washers
-
Quick Assembly
Wrench included
-
Heavy Duty Poly Rope
for Main Cover Tie Down
-
Heavy Duty Grommets
on Cover & Doors
-
Two Box Shipment - easily unloaded and transported
(shown below)
-
Average Install time - 2 hours

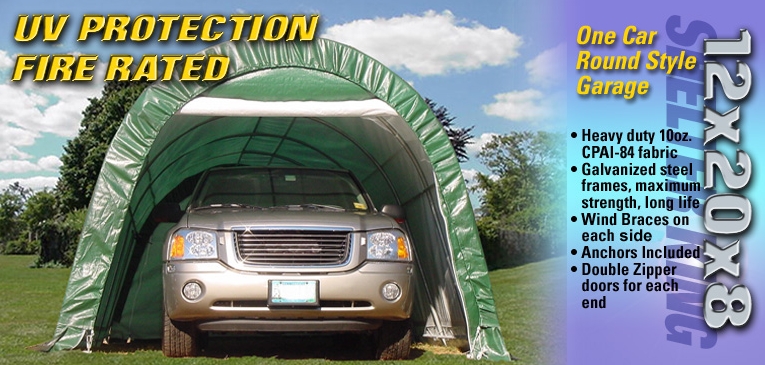

Nominal Size - 12’W x 20’L x 8’H
Arches - Six on 48” Spacing 1-5/8” Galvanized Steel Frame
Standard End Door Size - 10’ Width X 6ft Height
Colors Outer Colors - Forest Green, Grey, and Tan All Interiors - White
Main Cover UV Protected 24 mil Fabric Backed Poly Material 10oz. Weight
Fire Retardant Standard Main Cover & Doors meet CPAI -84 Section 5
Anchors - Six(6) 36” Duckbill with U-Bolts & Drive Rod Standard.
2 Year Warranty
Weight - 289 lbs shipped in Two boxes Box
1: 58.5" Long x 15.5" Wide x 7.5" High
Box 2: 66.5" Long x 20.5" Wide x 8.75" High
